Parts Identification - Bridge Side


Click here to see Dial Side Illustration.

Return to " Useful Information" Page - Or Use the Back Button.

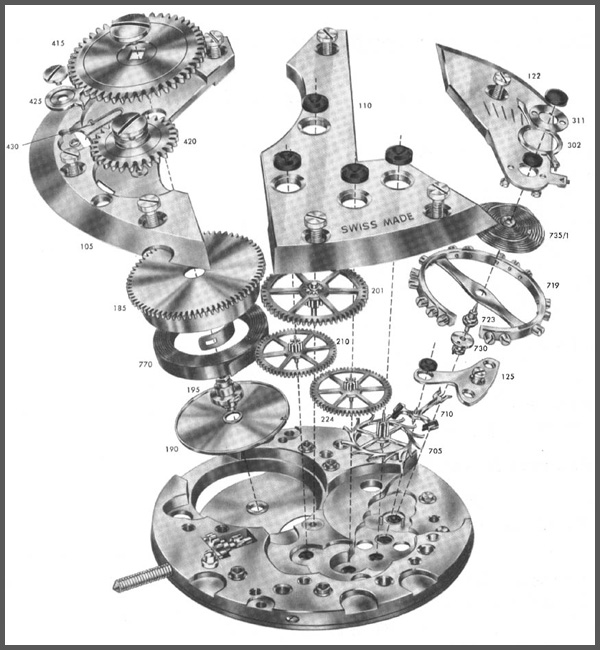

manual wind watch movement, bridge side

Legend:


105 - Barrel Bridge
110 - Train Wheel Bridge
122 - Balance Cock
125 - Pallet Cock
185 - Barrel
190 - Barrel
195 - Barrel Arbor
201 - Center Wheel and Pinion Wheel
210 - Third Wheel and Pinion
224 - Fourth Wheel and Pinion
302 - Regulator
311 - Upper Cap Jewel w/Endpiece
415 - Ratchet Wheel
420 - Crown Wheel
425 - Click
430 - Click Spring
705 - Escape Wheel
710 - Pallet Fork
719 - Balance Wheel
723 - Balance Staff
730 - Roller
735/1 - Balance Spring

For an individual screw part number, insert a 5 in front of the part number for which the screw fits. Example: Setting Lever Screw part number is: 5443.

Accurate descriptions will produce the best result.  Consider the following when posting a request:

*Specify Height for - Cannon Pinions, Hour wheels, Sweep Second Wheels and other parts where there may be height variations.

*Specify pivot type (straight (S) or conical (C) [cap jeweled]) for pallet arbors and escape wheels, i.e., C/S, S/S, C/C, S/C.

*Specify upper pivot first (bridge side).

*For balance staffs, specify shock style if applicable, i.e. - Incabloc, KIF, etc.
